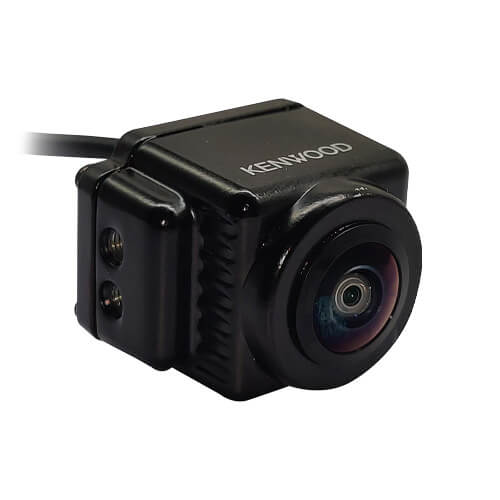

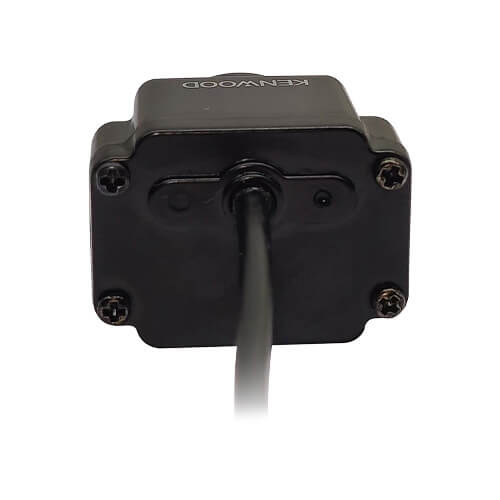

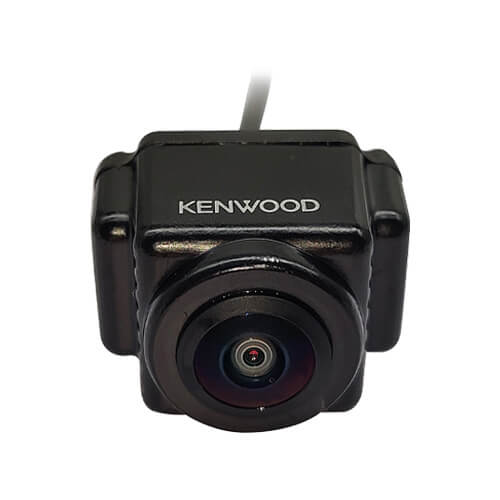

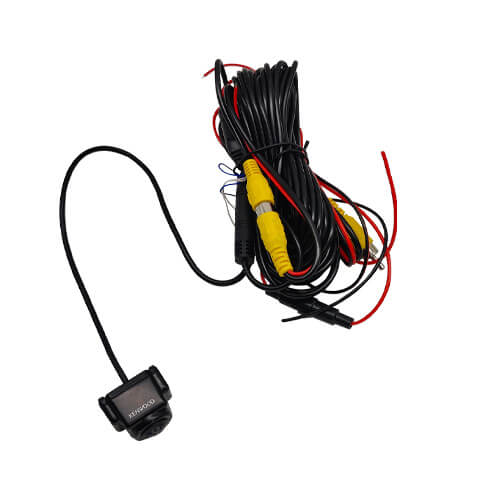

Kenwood CMOS-150HD Multi-View HD Camera

The Kenwood CMOS-150HD is a compact, high-definition multi-view camera engineered to deliver outstanding clarity and wide-angle visibility for safer reversing, parking, and maneuvering. Designed for seamless integration with compatible Kenwood AV head units, this camera provides true 720p HD output, exceptional low-light performance, and flexible viewing options for maximum driving confidence.

Key Features

High-Definition Video Output

• Displays true 1280 × 720 (720p HD) resolution on compatible Kenwood receivers

• Delivers crisp, clear imaging for enhanced visibility of obstacles, pedestrians, and surroundings

• Smooth 30fps video ensures fluid movement while reversing

Wide Viewing Coverage

• Ultra-wide 170° horizontal and 100° vertical field of view

• Significantly reduces blind spots and improves overall situational awareness

• Ideal for tight parking spaces and busy environments

Multi-View Capability

• Selectable rear or front camera view (mirror image switching via signal wire)

• Suitable for reversing, front-view monitoring, or multi-camera setups

• Output Type: HD-TVI for optimal HD signal transmission

Low-Light Performance

• Equipped with 2DNR (Digital Noise Reduction) for clearer night-time visibility

• Handles dark environments with reduced visual noise and better contrast

Durable, All-Weather Construction

• IP67-rated for waterproof and dustproof protection

• Reliable performance in extreme temperatures from -30°C to 85°C

• Built for long-term durability in harsh conditions

Technical Specifications

• Resolution: 1280 × 720 (720p HD)

• Sensor: 1/2.9″ CMOS

• Lens: F2.0

• Frame Rate: 30fps

• Viewing Angle: H: 170° / V: 100°

• Operating Voltage: 12V / 24V

• Output: HD-TVI

• Dimensions: 31.1mm (W) × 23.0mm (H) × 25.2mm (D)

• Weight:

  • Camera only: 50g

  • Camera + DC box: 100g

• Cable Length (Camera side): 2.14m

Compatibility

Fully compatible with select Kenwood AV receivers, including:

• DMX7525S

• DMX7525DABS

• DMX7509XDS

• DMX9021S

• DDX9020DABS

• DDX920WDABS

• DMX9720XDS

• DMX9724XDS

• KW-M795BW

• KW-Z900W

Why Choose the CMOS-150HD?

Whether you’re upgrading your reversing system or adding a premium camera to your Kenwood AV setup, the CMOS-150HD offers unmatched HD clarity, ultra-wide visibility, and rugged all-weather dependability. It’s a perfect choice for drivers who demand superior safety and performance on every journey.
