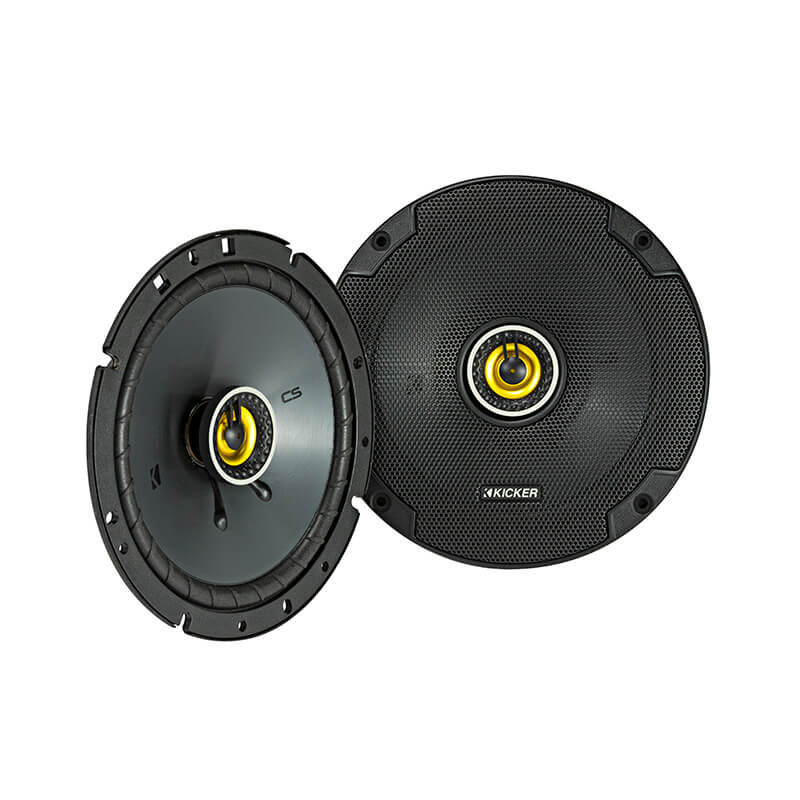

CS-Series 6-1/2-inch Coaxial Speakers are the perfect way to upgrade your factory speakers.

CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. The stamped-steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.

These CS speakers work best with 100 watts of recommended power. See below for more details.

• Fits nearly every car made
• Zero-protrusion tweeters to fit nearly any factory depth
• Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
• UV-treated poly-foam surround resists heat or direct sunlight
• Large woofer magnet in a heavy-duty motor for ultra-clean bass
• PEI-tweeter construction provides superb clarity
• Neodymium tweeter magnets allow for increased volume in high frequencies
• Steel mesh grilles included for speaker protection

Specifications:

• Speaker Design: 2 – way
• Woofer Size | in [mm]: 6 1/2 [160]
• Tweeter Size | in [mm]: 1/2 [13]
• DC Resistance | ohm: 3.3
• Peak Power | Watts: 300
• Continuous Power | Watts, RMS: 100
• Sensitivity [SPLo] | dB @ 1W, 1m: 90
• Effective Frequency Range | Hz: 40-20k
• Mounting Hole Diameter | in [mm]: 4 13/16 [123]
• Top Mount Depth | in [mm]: 3/8 [9]
• Bottom Mount Depth | in [mm]: 1 11/16 [43]
• Tweeter Protrusion | in [mm]: 0
• Grilles: Yes
• Tweeter Magnet Material: Neodymium
• Tweeter Dome Materia: PEI [polyether imide
• Tweeter Design: Balanced dome
• Woofer Cone Material: Polypropylene
• Woofer Surround Material: Polyester foam
• Weight: 2 kg
• Dimensions: 184 × 365 × 83 mm
