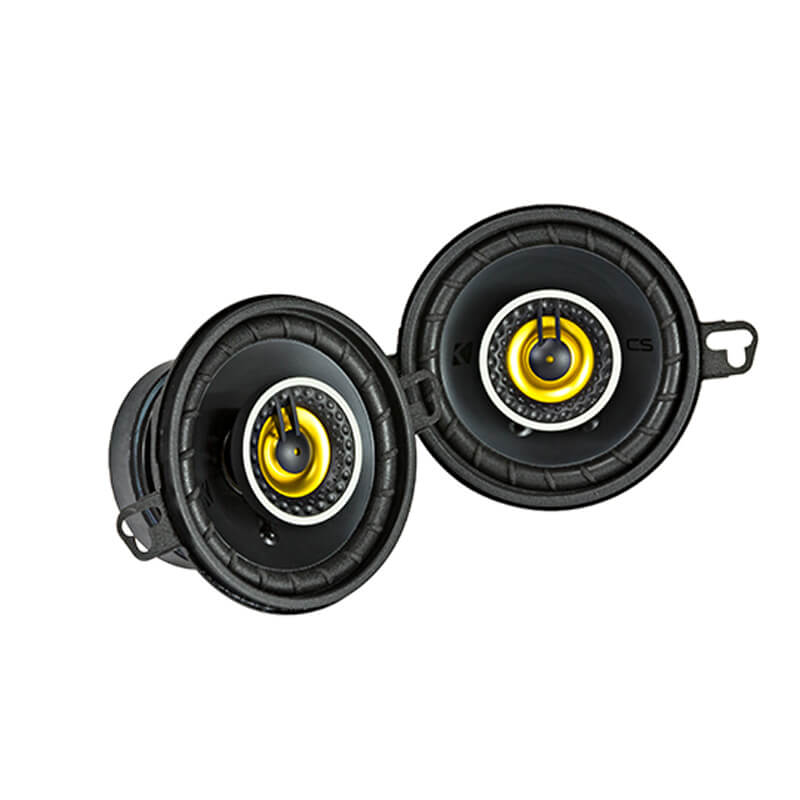

CS-Series 3-1/2 Inch Coaxial Speakers are built for clarity, volume and durability.
These coaxial speakers are a significant upgrade in your sound. A stamped-steel framework supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight, for years of outstanding audio quality.
These CS speakers work best with 30 watts of recommended power. See below for more details.
Fits nearly every car made
Zero-protrusion tweeters to fit nearly any factory depth
Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
UV-treated poly-foam surround resists heat or direct sunlight
Large woofer magnet in a heavy-duty motor for ultra-clean bass
PEI-tweeter construction provides superb clarity
Neodymium tweeter magnets allow for increased volume in high frequencies
Specifications:
- Speaker Design: 2 – way
- Woofer Size | in [mm]: 3 1/2 [89]
- Tweeter Size | in [mm]: 1/2 [13]
- DC Resistance | ohm: 3.2
- Peak Power | Watts: 90
- Continuous Power | Watts, RMS: 30
- Sensitivity [SPLo] | dB @ 1W, 1m: 88
- Effective Frequency Range | Hz: 80-20k
- Mounting Hole Diameter | in [mm]: 3 [78]
- Top Mount Depth | in [mm]: 1/4 [6]
- Bottom Mount Depth | in [mm]: 1 11/16 [42]
- Tweeter Protrusion | in [mm]: 1/8 [3]
- Grilles: No
- Tweeter Magnet Material: Neodymium
- Tweeter Dome Materia: PEI [polyether imide]
- Tweeter Design: Balanced dome
- Woofer Cone Material: Polypropylene
- Woofer Surround Material: Polyester foam
- Weight : 0.8 kg
- Dimensions: 203 × 108 × 64 mm
