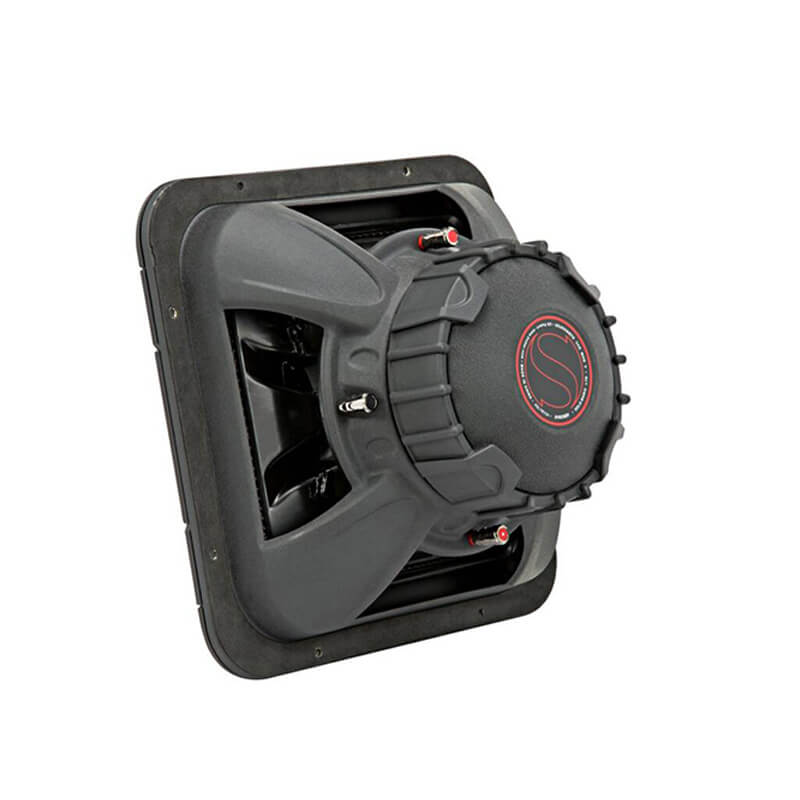

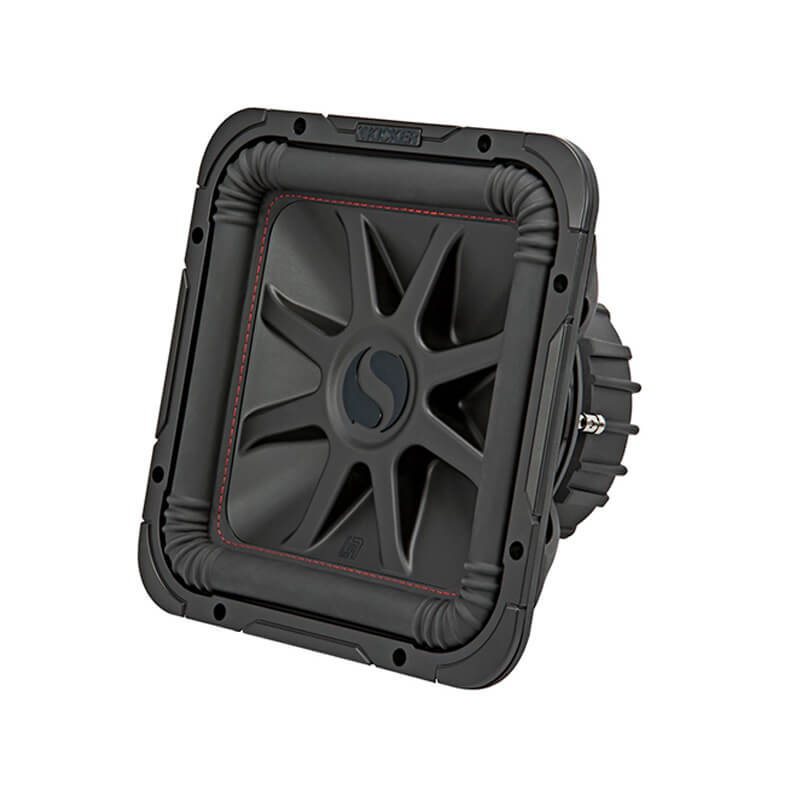

Kicker 45L7R122 12″ Subwoofer – 600W RMS Dual 2 Ohm
The Kicker 45L7R122 12″ subwoofer delivers 600W RMS with dual 2 Ohm voice coils, featuring a square cone for louder, deeper bass performance.
$479.00
BIG BASS. SAME SPACE.
The engineers at KICKER HQ designed the L7R to give you more bass than a circular sub, without a larger enclosure. Welcome to the world of square sub perfection!
Dual two-Ohm Voice Coil
Wrap Around Gasketing
Patented Ribbed Corners
Injection-Molded SoloKon™ Woofer
360-Degree Back Bracing
UniPlate™ Back Plate And Pole Piece
Bumped Back Plate
Thick Tinsel Leads
Large Ceramic Magnet
Steel Basket With Spoke Design
Nickel Plated Speaker Terminals
The L7R 12-Inch Subwoofer works best with 600 watts of recommended power in a sealed or ported enclosure. See below for more details.
Specifications:
- Thiele/Small Parameters
- 45L7R122 T/S Parameters
- SIZE [in, cm]: 12, 30
- IMPEDANCE [Ohms]: 2 DVC
- Recommended Amplifier Power (watts RMS): 600
- Peak Power (watts, per ANSI/CTA-2031-A): 1200
- SENSITIVITY [dB 1w/1m]: 86.7
- MOUNTING DEPTH [in, cm]: 6-7/8, 17.4
- MOUNTING DIAMETER [in, cm]: 11-1/16, 28.1
- MIN SEALED BOX VOL [cu. ft, L]: .88, 24.92
- MAX SEALED BOX VOL [cu. ft, L]: 2, 56.64
- MIN VENTED BOX VOL [cu. ft, L]: 1.75, 49.6
- MAX VENTED BOX VOL [cu. ft, L]: 3.25, 92
- Weight : 9.6 kg
- Dimensions: 375 × 376 × 257 mm
What’s in the Box:
1 – 12″ Subwoofer, 1 – install manual, 2 – Kicker stickers
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
