Blind Spot Radar System Universal – OEM Sensor Upgrade

Universal 77GHz Blind Spot Radar System – OEM Sensor Upgrade

Enhance your driving safety with the advanced 77GHz Millimeter Wave Blind Spot Detection System (BSD/BSM). Designed for cars, SUVs, vans, utes, and trucks, this all-weather radar monitoring system uses high-frequency millimeter wave technology to accurately detect vehicles in your blind spots, even through smoke, fog, or dust.

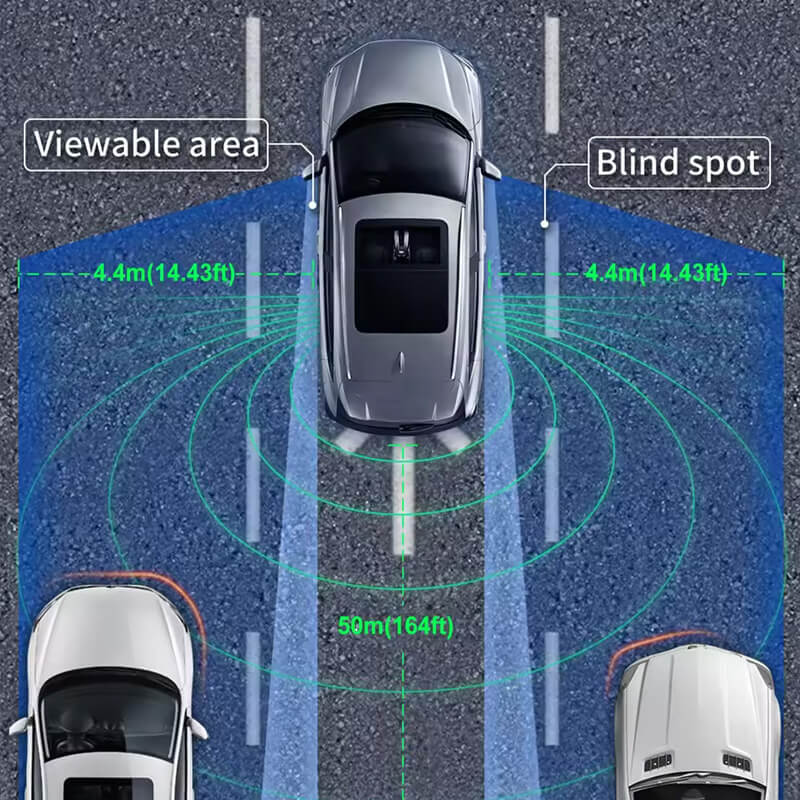

With a detection range of up to 50 meters (164 ft) horizontally and 14.43 ft vertically, the system can track up to 64 objects simultaneously, calculating their speed, angle, and relative distance in real time. This ensures reliable lane-change assistance and dead zone monitoring for safer driving.

Key Features & Functions

• All-Weather Radar: 77GHz millimeter wave radar penetrates rain, fog, and dust for accurate detection anytime.

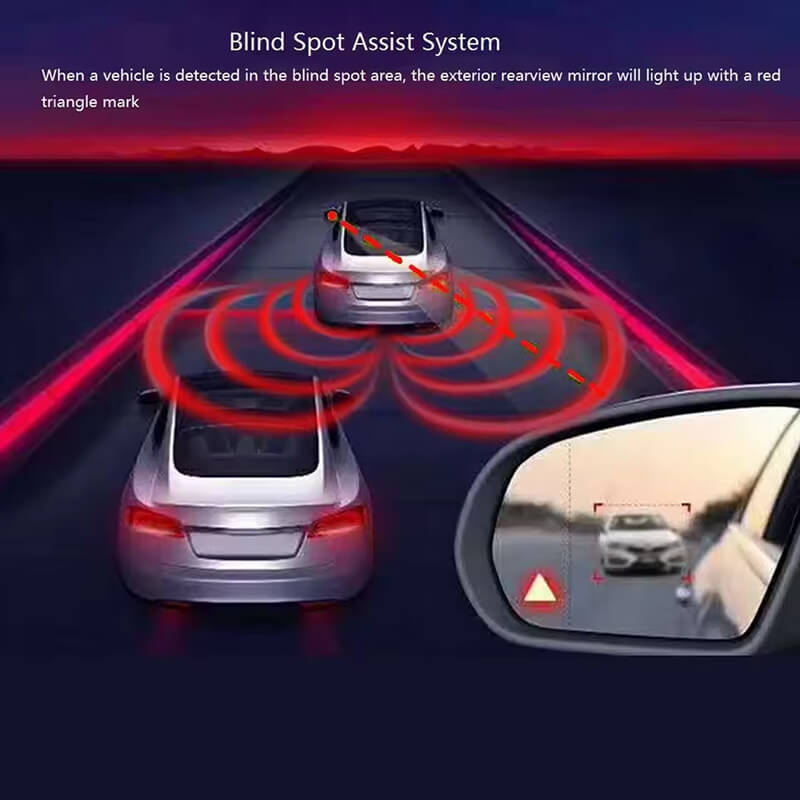

• BSD (Blind Spot Detection): Warns of vehicles entering your blind zone at speeds above 15 km/h.

• LCA (Lane Change Assist): Provides early warnings of approaching vehicles up to 50m behind when changing lanes.

• Two-Level Alarms:

  • Level 1: Indicator light stays on.

  • Level 2: Light flashes + buzzer alert when turn signal or reverse gear is engaged.

• Real-Time Monitoring: Tracks up to 64 moving objects with high accuracy (±0.1m).

• AOA Overtaking Warning: Activates at speeds above 15 km/h to alert when being overtaken.

• Self-Diagnosis System: Automatic check ensures correct operation on startup.

Technical Specifications

• Operating Voltage: 9V – 32V

• Frequency: 77–79GHz

• Working Temperature: -25℃ to +75℃ (-13℉ to 167℉)

• Power Consumption: <3W

• Waterproof Rating: IP67

• Detection Range: 0–50m (0–164ft)

• Horizontal Angle: 150° | Vertical Angle: ±10°

• Distance Resolution: 0.2m | Accuracy: ±0.1m

• Velocity Accuracy: 0.1m/s

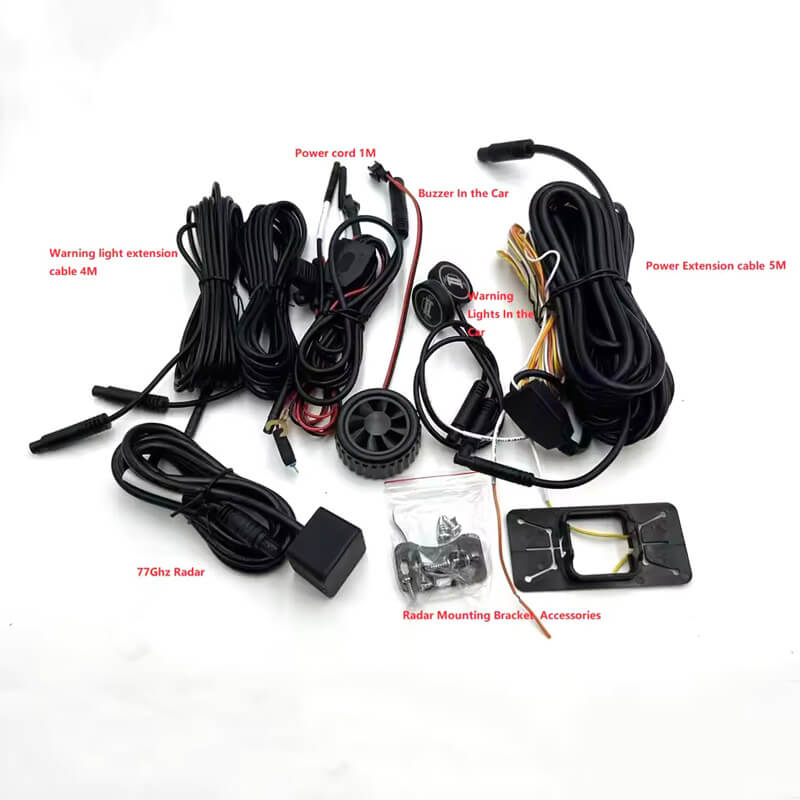

Package Includes

• 1 × 77GHz Millimeter Wave Radar Unit

• 1 × Radar Mounting Bracket Set

• 1 × In-Car Buzzer

• 2 × In-Car Warning Lights

• 2 × Reminder Light Extension Cables (4m)

• 1 × Power Cord (1m)

• 1 × Power Extension Cord (5m)

• 1 × User Manual

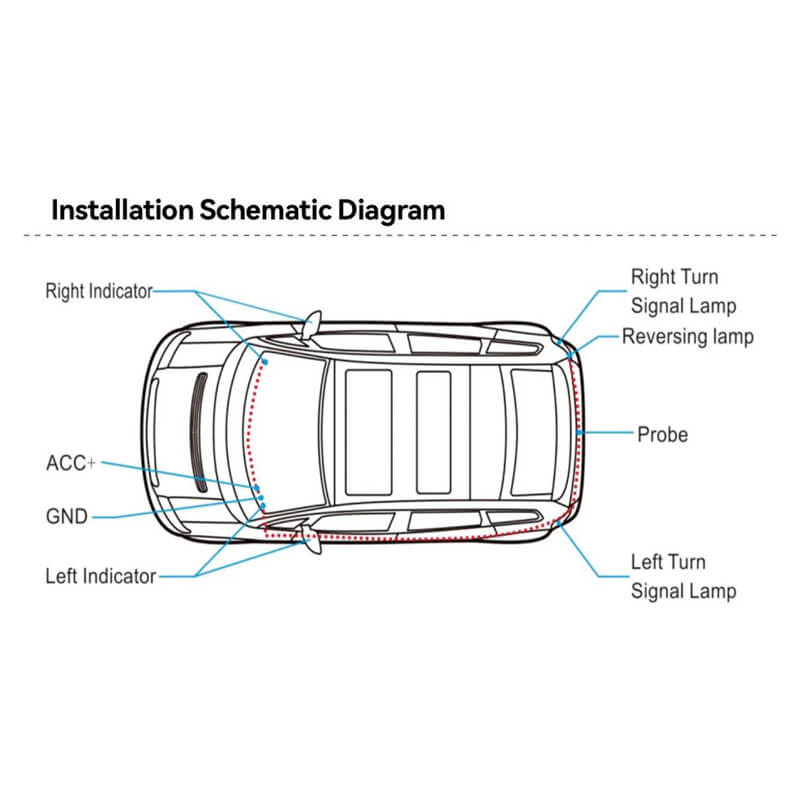

Installation Overview

• Connect red wire to ACC power supply and black wire to ground.

• Extension cords connect warning lights to left/right indicators.

• Yellow wire → Left turn signal | Orange wire → Right turn signal | White wire → Reverse light.

• For full details, refer to the included installation manual.

✅ With its OEM-grade radar sensor and universal compatibility, this system is an essential safety upgrade for personal cars, commercial vehicles, and fleet operations.
