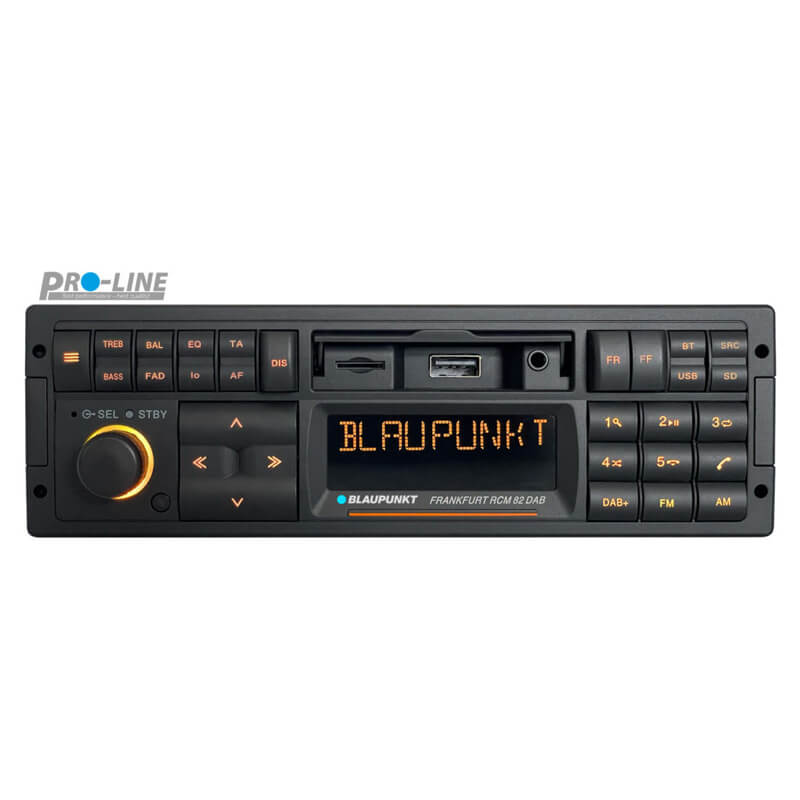

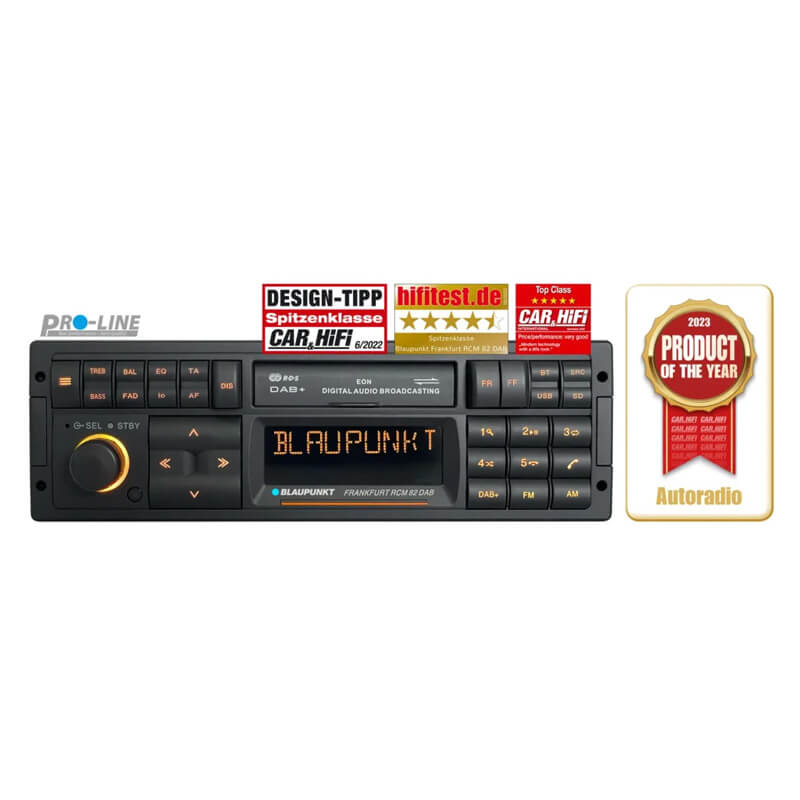

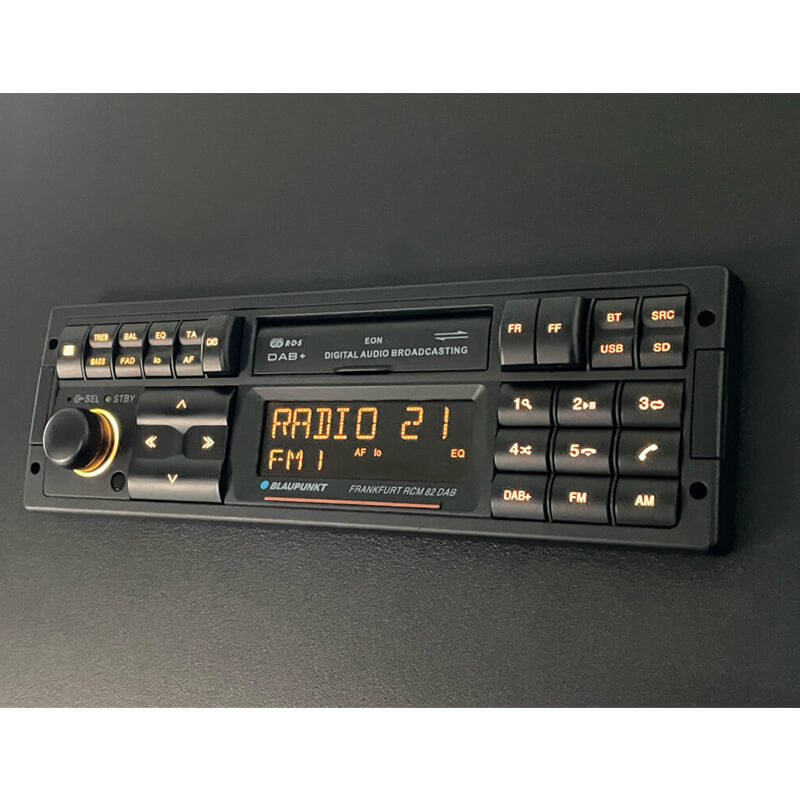

Classic 90s Car Radio Blaupunkt Frankfurt RCM 82 DAB
Blaupunkt Frankfurt RCM 82 DAB – Classic 90s Car Radio with Bluetooth & DAB+ - Image 2
Classic 90s Car Radio Blaupunkt Frankfurt RCM 82 DAB
Classic 90s Car Radio Blaupunkt Frankfurt RCM 82 DAB
, ,

Blaupunkt Frankfurt RCM 82 DAB – Classic 90s Car Radio with Bluetooth & DAB+

Brand:

Blaupunkt Frankfurt RCM 82 DAB recreates the iconic 90s car radio with Bluetooth, DAB+, and USB. Ideal for upgrading classic vehicles with modern tech.

$859.00

The classic 90s car radio returns!

The relaunched cult car radio “Frankfurt RCM 82 DAB” with many new features!

Over the years, some models have become true cult objects. Now we present the new interpretation of the popular 1-DIN car radio and combine the unique selling points of the 90s model with new technologies and functions. The result is the Blaupunkt “Frankfurt RCM 82 DAB”.

Its operating concept, simple design and crystal-clear reception contributed significantly to the popularity of the original Frankfurt RCM 82. In the new edition, we have adopted the styling of the original model, but at the same time given the radio a modern Vario Colour illumination for the keys and display.

Thanks to the Blaupunkt Codem IV FM RDS and DAB+ tuner, first-class reception also remains a strength of the new youngtimer car radio. New are the numerous interfaces, including two USB ports, an Aux connection and a microSD slot.

Audio streaming via Bluetooth is also not a dream of the future for the returning legend. Moreover, the radio bears the “Made for iPhone/iPod” label and ensures appropriate compatibility.

The audio sources can all be selected directly via buttons, and many other settings can also be accessed directly at the touch of a button. Further functions are located in the clearly structured menu, which is presented in German or English. All settings are permanently stored even if the battery is disconnected. This means that the entertainer from the 90s has arrived in the present.

The new “Frankfurt RCM 82 DAB” has a short installation depth – ideal for youngtimers with shortened installation slots. But it is not only the car radio itself that takes the user on a journey through time; the packaging of the device has also been elaborately designed and modelled on the original.

Highlights

Radio
• High-End CODEM IV World-tuner
• FM, AM, DAB, DAB+ Tuner with radiotext/DLS
• Traffic function
• Travelstore
• Service following
• Introscan Presets and Band

Mediaplayer
• USB (2x), microSD with MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV Support
• Analog audio input on the front (AUX-IN)
• Apple iPod Support

Bluetooth
• Telephony via int. or ext. microphone
• Audiostreaming with trackinfo
• Audio mix-option for mobile navigation
• Voice assistant support (e.g. Siri, Google, Alexa)
• Automatically switch on when there is an incoming call (Wake-up on call)
• Two phones can be connected at the same time (Twin-Connect)
• Phonebook access

Sound
• Digital signal processing (DSP)
• 2x 14-band equalizer (front and rear channels separately adjustable)
• Sound presets
• Loudness
• 4-channel pre-amp out + subwoofer preamp output
• 4x 50 Watt

General
• Adjustable illumination color of buttons and display (Vario Colour, 4,096 colors)
• 2-line display
• Brightness control of display and keys (DIM function)
• Direct access to all audio sources
• Permanenter memory
• Short body (low installation depth)
• IR-remote control option, RC-10 compatible
• Steering wheel remote control support (analog SWC input)

Blaupunkt PRO-LINE
Best performance – best quality!

The BLAUPUNKT car multimedia and car radio products in the Pro-Line series offer the highest reception performance and stability in the area of ​​analog and digital radio reception thanks to exclusive tuner concepts.

The high-quality components and the even stricter quality controls, thanks to the Blaupunkt quality management program, increase the reliability and service life of the products.

From the cassette compartment to modern media

The interfaces of the media port enable you to conveniently play your music collection via microSD, USB, audio input or even with an iPod/iPhone. Small pen drives and microSDs can also be used with the flap closed to preserve the original look.

microSD

USB

AUX

Interesting for youngtimers / oldtimers

The original device was often installed in the VW Golf III, Ford Escort, BMW E30/E34/E36, Opel Kadett, MB W124/R129/W140, Porsche 911/944/928 and many more in the 90s. Now it returns as “Frankfurt RCM 82 DAB” in the old guise, but with the latest technology. And with “Variocolour” (4,096 colors), the illuminated buttons and the display can be perfectly matched to the color of the car model for a coherent overall picture.

Installation videos

Pictures sent by our customers

Do you have a nice photo of one of our retro car radios in your vehicle?
Then send it by e-mail to: [email protected] with the subject “Einbaufoto“.

Porsche

Mercedes

BMW

Audi

Volkswagen

Opel

MG

Peugeot

Renault

Get a quick installation quote
Call 1300 020 385 for an instant quote (during business hours), or use the contact form below.

  • Your Vehicle Details:
  • Drop files here or
    Max. file size: 128 MB.
    • This field is for validation purposes and should be left unchanged.

    SKU: RCM 82 Categories: , ,

    RADIO ANALOG / DIGITAL
    Tuner Type High-End Automotive Tuner Blaupunkt CODEM IV
    World Tuner (switchable) EU, USA, South America, Thailand
    Frequency bands FM, AM, DAB, DAB+
    Frequency band FM 87.5 – 108 MHz
    Frequency band MW 531- 1602/ 530- 1710 kHz
    Channels (frequency band) DAB/ DAB+ 5A- 13F (174,928- 239,200 MHz)
    Station memory 15x FM, 10x AM, 15x DAB
    Station memory levels deactivatable FM2, FMT, AM, AMT, DAB2, DAB3
    Station display (PS) Yes
    Radiotext/ Radiotext Plus (RT/ RT+) Yes/ No
    Display DLS/ ENSEMBLE/ SERVICE Yes/ Yes/ Yes
    Alternate frequency function (AF) Yes
    Traffic Radio (TA) FM/ DAB Yes/ Yes
    RDS Time (CT) Yes
    Enhanced Oth. Netw. (EON) Yes
    Regional function (REG) Yes
    Program type identifier (PTY) FM/ DAB Yes/ Yes
    PTY Seek FM/ DAB Yes/ Yes
    Travelstore/ Number of Presets for Travelstore Yes/ 5x FMT, 5x AMT
    Band Scan + Preset Scan FM/ DAB Yes/ Yes
    Sensitivity (FM) Two levels (lo / dx)
    Noise suppression (FM) Yes
    Hi-Cut (FM) Yes (multi-level switchable)
    DAB-DAB Service following Yes
    DAB-FM Service following Yes
    Service scan Yes
    Ensemble/ Service selection Yes/ Yes
    Ensemble/ Service browsing Yes/ Yes
    Frequency response FM 30 – 15.000 Hz +/- 3 dB
    Frequency response DAB 20 – 20.000 Hz +/- 3 dB
    MEDIAPLAYER
    AUX front Yes (3.5 mm jack)
    AUX detection/ automatic source activation Yes
    USB front Yes (type A, recessed jack)
    USB rear Yes (type A, cable)
    Memory card reader Yes (microSD, microSDHC, microSDXC)
    Concealed front inputs Yes (USB & microSD usable with flap closed)
    Compatible file system (USB, memory cards) FAT16, FAT32, exFAT
    Maximum storage size (USB, memory cards) > 128 GB
    Maximum file/folder count (USB, memory cards) > 30,000
    Playback formats MP2, MP3, WMA, FLAC, M4A(AAC), APE, WAV
    Display options ID3V2 (title, artist, album), folder, file, playtime
    Folder & file browsing Yes
    Scrolling Yes (single/ continuously)
    iPod, iPhone control Yes (USB front and rear)
    Shuffle folder/ media Yes/ Yes
    Repeat Title/ Folder/ All Yes/ Yes/ Yes
    Mix / Repeat / Scan Yes/ Yes/ Yes
    BLUETOOTH*
    Phone call Yes
    Internal microphone Yes
    Connectivity ext. microphone Yes
    Answer/ reject call Yes/ Yes
    Access phonebook Yes (max. 1000 numbers)
    Audio streaming Yes
    Audio streaming ID3 track display Yes (Title, Artist, Album, Playtime)
    Voice assistant access (e.g. Siri, Google, Alexa) Yes
    Cell phone navigation audio mix Yes
    Auto wake-up on call Yes (when radio off + ignition on)
    Fast pairing without PIN Yes
    Automatic reconnection Yes
    Bluetooth version 5.0 LE
    Number of paired devices max. last 5
    No. of devices connected at the same time max. 2 (Twin Connect)
    Supported profiles A2DP, AVRCP, HFP, SPP
    Audio Codecs aptX, AAC, SBC
    *Availability/support of functions depend on the phone/app used!
    SOUND
    Equalizer Number of bands/design 2x 14/parametric
    Bass/treble adjustment Yes / Yes (+/- 12 steps)
    Source specific bass/treble adjustment Yes
    Balance/fader Yes / Yes (+/- 12 steps)
    HPF/LPF Yes, separately for front/rear channels, variable
    Loudness Yes
    Sound Presets Yes (Rock, Pop, Classical)
    Speaker Outputs (Channels) 4
    Preamp Outputs (Channels, Voltage) 4 (RCA, < 4V)
    Max. Power 4 x 50 watts
    Sine power at 14.4 V 4 x 24 watts (according to DIN 45324)
    Sub-Out 2 (RCA, gain/ frequency variable)
    GENERAL
    Display LCD, negative, anti-reflective, wide angle 2 lines, Alphanumeric/Symbols
    Illumination color display/keys Vario Color, 4,096 colors
    Day/Night mode Yes (manual/via dimmer connection)
    Brightness Multi-level, variable
    Time display Yes
    HMI languages English, German
    Low standby current Yes (< 3,5 mA )

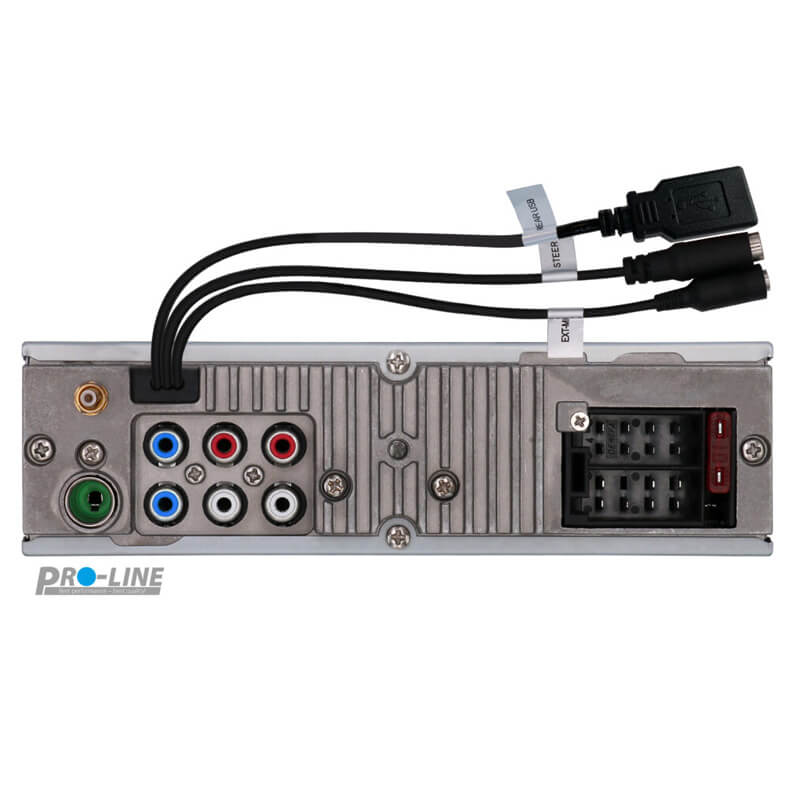

    Antenna inputs FM DIN/ ISO, DAB SMB (with 12 V phantom power)
    Telephone mute Yes
    Ext. handsfree microphone connector Yes
    Remote control Yes (IR input for RC-10 and card remote)
    Steering wheel remote control (SWC) Yes (analog, programmable, pre-programmed)
    Variable scan time Yes
    Confirmation beep Yes (can be deactivated)
    Control panel type Fixed panel
    Color panel/ decor ring Black/ Black
    Software Update via USB
    Permanent Memory Yes (Settings & Presets)
    Demo mode Yes
    Weight approx. 0.67 kg
    Dimensions 50mm x 178mm x 116mm (H x W x D, housing only) 58mm x 186mm x 10mm (H x B x T, front w/o keys)
    Operating voltage 10.5 – 14.4 V
    Power consumption in operation: < 10A, 10 sec. after ACC power off: < 3.5 mA
    SCOPE OF DELIVERY
    External BT microphone Yes
    Unlocking tool Yes
    Connectors (ISO A, B) Yes
    Antenna adaptor (DIN/ ISO) Yes
    DAB antenna Optional accessories (e.g. 2 006 021 000 000)
    IR remote control Optional accessories
    Subject to technical modification.
