AKVW4: 9/10 INCH INSTALL KIT TO SUIT VOLKSWAGEN VARIOUS 2015-2020

Description:

The Aerpro AKVW4 9″ Installation Kit comes with all of the components required to install a 9″ trapezoid shaped radio into your Volkswagen Amarok (2016-), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016), Transporter (2016-2019) vehicles whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Important Information:

• This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X & AM10X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting ‘CAN Bus Adapter’ on boot-up, go to the Menu and select ‘Steering Wheel Control’ > ‘With Adapter’.
• Feature Retention will be radio dependent.

Features:

• To suit Volkswagen Amarok (2016-), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016), Transporter (2016-2019) vehicles
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (including phone button^)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs:

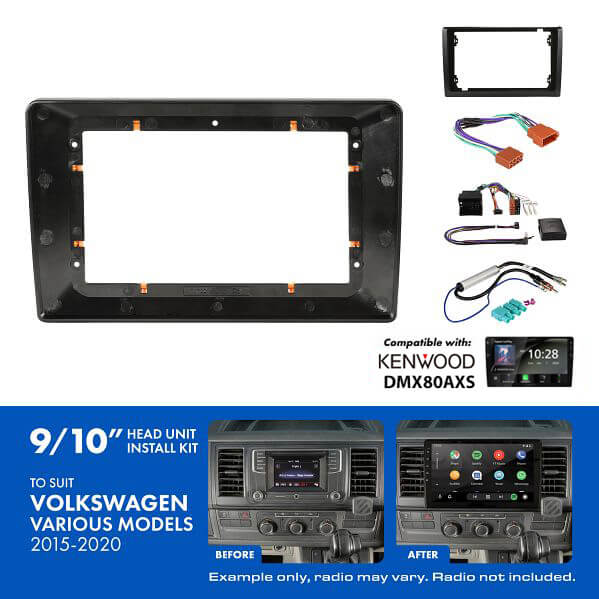

• Kit Inclusions:
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Adaptor to allow for 9″ and 10″ radios to be installed
  • Antenna Adaptor
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button^)
  • Factory Reverse Camera: No
  • AUX Input: No
  • USB Input: No
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: No
  • Other: ^Vehicles with MIB-PQ units from factory may need to remove fuse from factory Bluetooth module for phone button to work
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X & AM10X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting ‘CAN Bus Adapter’ on boot-up, go to the Menu and select ‘Steering Wheel Control’ > ‘With Adapter’.
  • Feature Retention will be radio dependent.

*Price does not include installation.
*We do not offer support for DIY installation.
*We advise professional installation.
